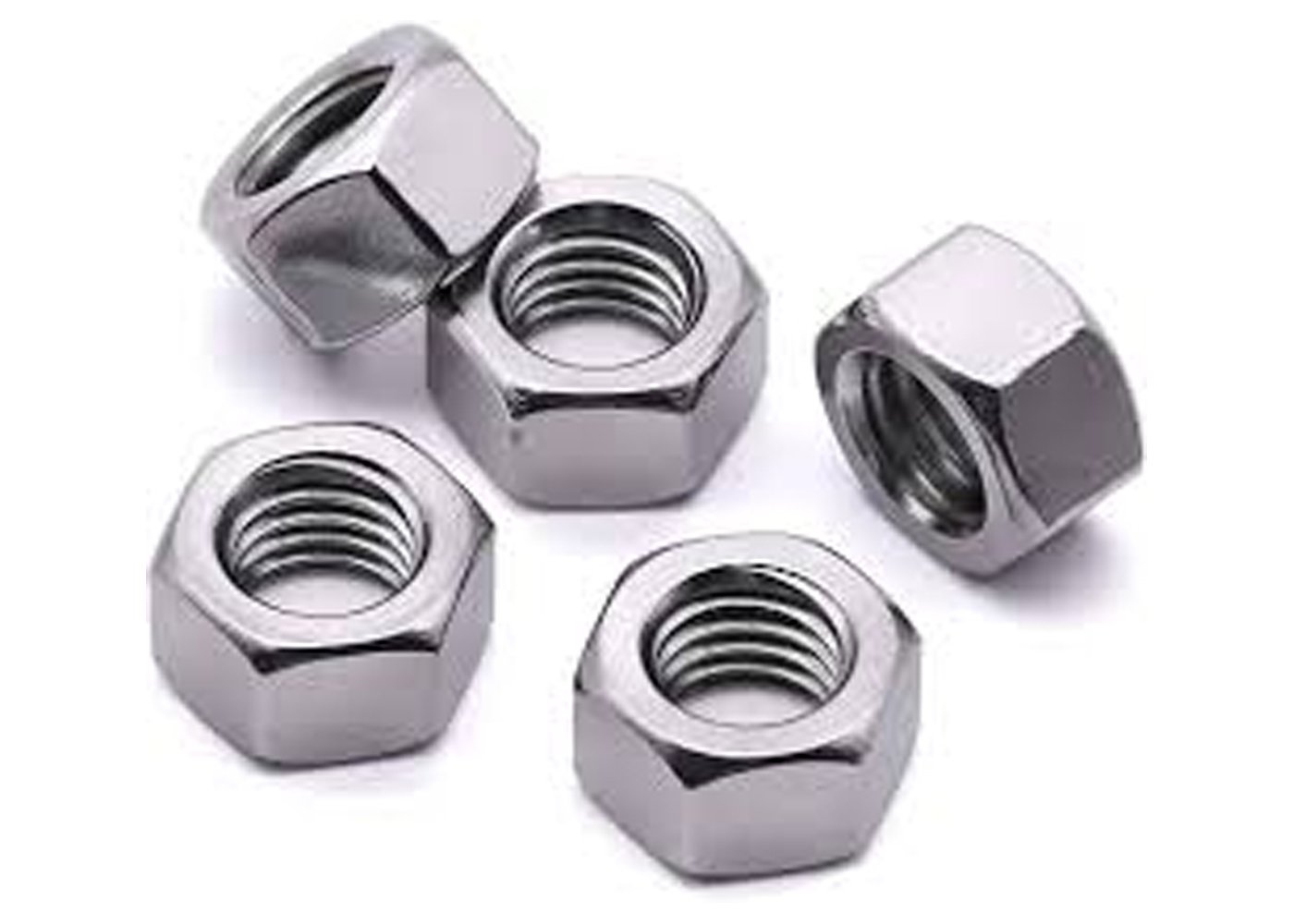

What are API 6A Heavy Hex Nuts?
API 6A Heavy Hex Nuts are high-strength fastening components used with applicable wellhead, Christmas tree, valve, and pressure-control equipment in upstream Oil & Gas applications.
API Specification 6A covers wellhead and Christmas tree equipment used in petroleum and natural gas operations. Heavy hex nuts are used with compatible stud bolts in critical bolted connections and closure assemblies where reliable load distribution and mechanical performance are required.
The larger bearing surface of a heavy hex nut provides effective load distribution across the bolted joint. API 6A Heavy Hex Nuts can be supplied for high-pressure applications according to the applicable equipment, material, dimensional, testing, and documentation requirements.
Features of API 6A Heavy Hex Nuts
High Tensile Strength
API 6A Heavy Hex Nuts are manufactured from suitable high-strength materials to provide the required mechanical properties for demanding Oil & Gas and pressure-control applications.
Precision Machining
Precision machining provides accurate dimensions, thread profiles, nut geometry, and tolerances according to applicable specifications and customer requirements.
Superior Load Distribution
The heavy hex configuration provides a larger bearing surface than standard hex nuts, helping distribute the applied load across critical bolted connections.
Corrosion Resistance
Suitable materials and available finishes or coatings can provide corrosion protection according to the service environment and project requirements.
API 20E Compliance
Where applicable, API 20E requirements can be incorporated into the qualification, manufacturing, inspection, testing, traceability, and documentation of Industrial Engineering Works.
Complete Material Traceability
Material identification and batch traceability support verification from raw material through applicable manufacturing, inspection, testing, and final supply stages.
Applications
Available Material Grades
ASTM A194 Grade 2H
ASTM A194 Grade 2H heavy hex nuts for demanding high-pressure and high-temperature applications where the specified material properties are required.
ASTM A194 Grade 2HM
ASTM A194 Grade 2HM heavy hex nuts for applicable Industrial Engineering Works applications requiring the specified mechanical and material properties.
ASTM A194 Grade 7
ASTM A194 Grade 7 heavy hex nuts for applicable high-strength industrial and Oil & Gas bolting applications
ASTM A194 Grade 7M
ASTM A194 Grade 7M heavy hex nuts for applicable low-temperature and critical service requirements according to project specifications.
Stainless Steel
Stainless steel heavy hex nuts can be supplied for applications requiring suitable corrosion resistance and material compatibility.
Duplex Stainless Steel
Duplex stainless steel heavy hex nuts are available for demanding environments requiring a combination of mechanical strength and corrosion resistance.
Super Duplex Stainless Steel
Super duplex stainless steel heavy hex nuts can be supplied for highly demanding applications requiring enhanced corrosion resistance and mechanical performance.
Why Choose Industrial Engineering Works?
Quality Assurance & Testing
API 20E Manufacturing
Where specified, manufacturing processes are controlled according to applicable API 20E requirements for Industrial Engineering Works.
Mechanical Testing
Applicable mechanical testing is performed to verify specified material and product properties.
Hardness Testing
Hardness testing is conducted according to the applicable material specification and customer requirements.
Dimensional Inspection
Nut dimensions, thread characteristics, across-flat dimensions, thickness, and other specified parameters are inspected for conformity.
Magnetic Particle Inspection (MPI)
MPI can be performed on applicable materials to identify relevant surface and near-surface discontinuities.
Positive Material Identification (PMI)
PMI testing can be performed to verify the chemical composition of the supplied material.
Third-Party Inspection
Third-party inspection can be arranged according to customer, EPC, OEM, or project requirements.
Material Test Certificates (MTC)
Material Test Certificates can be supplied to document material chemistry, mechanical properties, heat treatment, and applicable traceability.
Full Batch Traceability
Batch and lot identification support traceability through applicable material procurement, manufacturing, inspection, testing, and final supply stages.
Technical Specifications
| Parameter | Details |
|---|---|
| Product | API 6A Heavy Hex Nuts |
| Standard | API 6A |
| Qualification | API 20E |
| ASTM Grades | A194 2H, 2HM, 7, 7M |
| Thread Type | UNC / UNF |
| Size Range | Custom & Standard |
| Pressure Rating | API 6A Applications |
| Finish | Plain, Black Oxide, Zinc, PTFE, Xylan |
| Inspection | PMI, UT, MPI |
| Certification | EN 10204 3.1 / 3.2 |
Frequently Asked Questions
What are API 6A Heavy Hex Nuts?
API 6A Heavy Hex Nuts are high-strength heavy hex fastening components used with compatible stud bolts in applicable wellhead, Christmas tree, valve, pressure-control, and other critical Oil & Gas equipment.
What is the difference between standard hex nuts and heavy hex nuts?
Heavy hex nuts have a larger head and bearing surface than standard hex nuts. This configuration provides increased bearing area and is commonly used in heavy-duty and Industrial Engineering Works assemblies.
Are API 6A Heavy Hex Nuts API 20E compliant?
Where API 20E is specified for the applicable bolting application, Heavy Hex Nuts can be manufactured, qualified, inspected, tested, traced, and documented according to the applicable API 20E requirements.
Which ASTM grades are available?
Available grades include ASTM A194 Grade 2H, 2HM, 7, and 7M, along with stainless steel, duplex stainless steel, super duplex, and other applicable materials according to project requirements.
What BSL levels do you manufacture?
Where applicable, API 20E bolting can be supplied according to BSL-1, BSL-2, or BSL-3 requirements based on the specified application and project requirements.
Which industries use API 6A Heavy Hex Nuts?
They are primarily used in .Oil & Gas, offshore drilling, wellhead systems, Christmas trees, pressure-control equipment, valves, pipeline equipment, and related upstream petroleum applications.
Are custom coatings available?
Yes. Applicable finishes and coatings can be supplied according to the service environment, material compatibility, customer requirements, and project specifications.
Can you provide EN 10204 3.1 or 3.2 certification?
Yes. EN 10204 3.1 or 3.2 documentation can be supplied where specified by the customer, project, inspection agency, or applicable requirements.
Do you export API 6A Heavy Hex Nuts to the USA?
Yes. Industrial Engineering Works supplies API 6A Heavy Hex Nuts to customers throughout the USA and supports worldwide export requirements.
What stud bolts are compatible with API 6A Heavy Hex Nuts?
Compatible stud bolts depend on the required diameter, thread type, material grade, strength requirements, equipment specification, and project requirements. Industrial Engineering Works can supply compatible nut and stud bolt combinations according to the applicable specification.
