Tap End Stud Manufacturer & Supplier

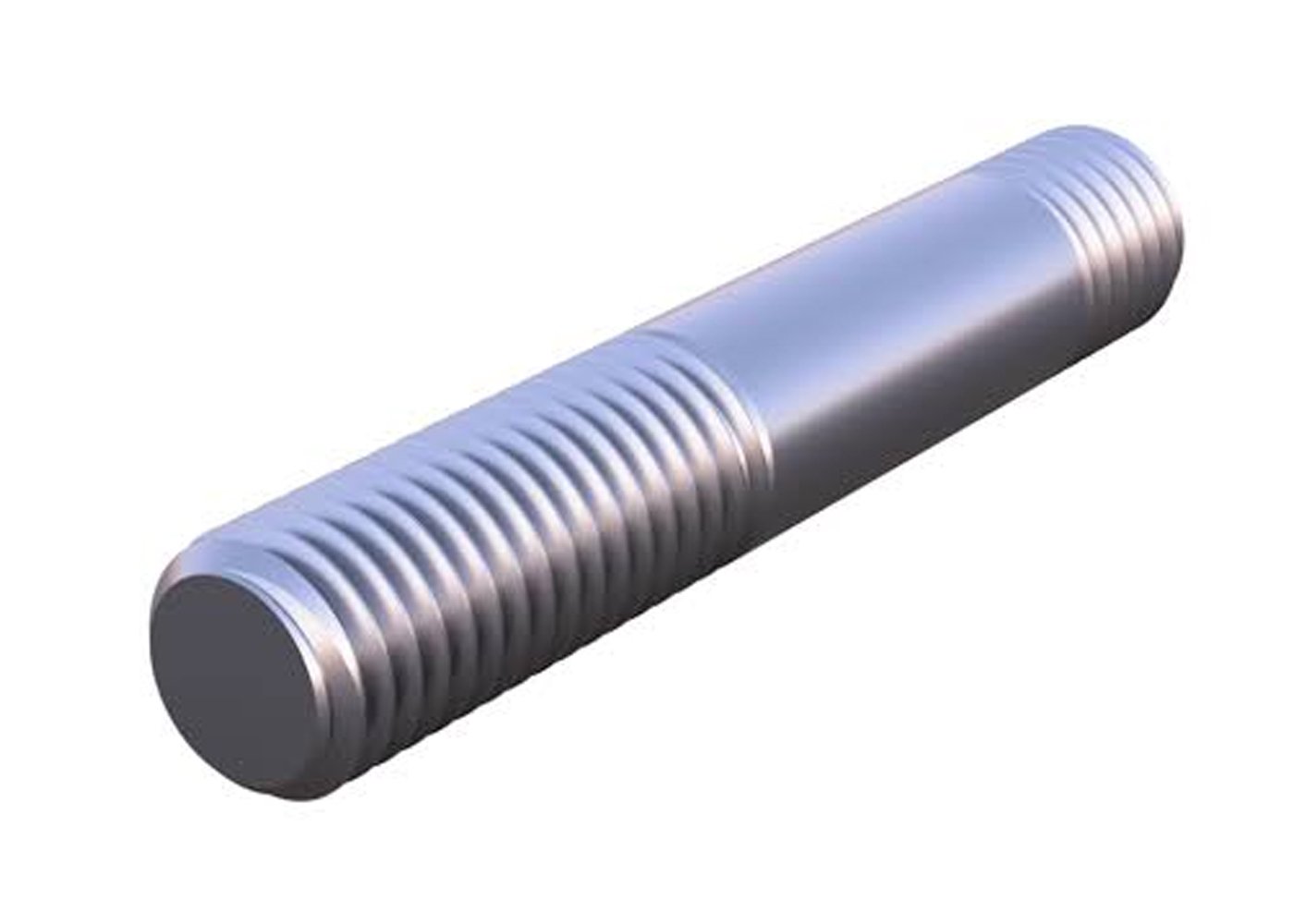

Tap End Studs are engineered fasteners designed for applications where one end of the stud is installed directly into a tapped component while the opposite threaded end is used with a nut. This configuration provides secure engagement and is particularly useful in equipment where repeated removal and installation of conventional bolts may not be preferred.
Unlike Double End Studs, which generally have externally threaded ends separated by an unthreaded or reduced center section, Tap End Studs are designed with one end intended for engagement with a tapped hole.
Tap End Stud Specifications
Industry Standards
Tap End Studs can be manufactured according to applicable industry and customer requirements, including:
ASTM A193
ASTM A320
ASME B18.31.2
API specifications, where applicable
Customer drawings and engineering specifications
Available Sizes
Tap End Studs are available in a broad range of diameters and lengths. Custom dimensions can also be manufactured for specialized equipment and project requirements.
Typical sizes can be supplied according to applicable dimensional standards, customer drawings or OEM specifications.
Thread Types
- UNC Threads
- UNF Threads
- 8UN Threads
- Metric Threads
- Custom thread configurations
Materials
Carbon Steel
Alloy Steel
Stainless Steel
Duplex Stainless Steel
Super Duplex Stainless Steel
Nickel Alloys
Inconel
Monel
Features & Benefits
Applications
Oil & Gas Equipment
Tap End Studs are used in equipment and bolted assemblies throughout upstream, midstream and downstream oil & gas operations.
Pressure Vessels
Suitable for pressure-containing equipment where secure and reliable threaded connections are required.
Heat Exchangers
Used in selected heat exchanger assemblies, covers, flanges and associated equipment.
Valves & Pumps
Tap End Studs can be supplied for valve bodies, pump assemblies and other industrial equipment requiring specialized fastening.
Power Generation
Used in power plant equipment and heavy-duty mechanical assemblies.
Petrochemical Plants
Suitable for process equipment, piping systems, flanges and pressure-containing assemblies.
Offshore Platforms
Corrosion-resistant materials and protective coatings can be selected for offshore environments where required.
Available Material Grades
Surface Finishes
Plain Finish
Plain or uncoated finish is available for suitable alloy steel and stainless steel applications.
PTFE Coating
PTFE coatings can provide low-friction characteristics and additional corrosion protection for suitable applications.
Hot Dip Galvanized
Hot dip galvanizing can be supplied for compatible carbon steel applications requiring enhanced atmospheric corrosion protection.
Zinc Plated
Zinc plating provides a protective surface for applicable industrial fastening applications.
Black Oxide
Black oxide is available for suitable steel fasteners where the specified application permits this finish.
Xylan Coating
Xylan coatings can be supplied for applications requiring enhanced corrosion resistance and controlled friction characteristics.
Cadmium
Cadmium coating may be available where specifically required by project specifications and permitted for the intended application.
Dimensions & Technical Specifications
| Specification | Details |
|---|---|
| Diameter | Standard & Custom |
| Overall Length | As per customer requirement |
| Tap End Length | Custom / Drawing Based |
| Nut End Length | Custom / Drawing Based |
| Thread Pitch | UNC, UNF, 8UN, Metric |
| Thread Class | As specified |
| Weight | Based on material and dimensions |
Why Choose Industrial Engineering Works?
Frequently Asked Questions
What are Tap End Studs?
Tap End Studs are specialized threaded fasteners designed with one end intended for installation into a tapped hole and another externally threaded end for securing a nut.
How are Tap End Studs different from Double End Studs?
Tap End Studs are designed to engage with a tapped hole at one end, whereas Double End Studs generally have externally threaded ends designed for use with nuts or threaded components.
Which ASTM standards apply to Tap End Studs?
Depending on the material and application, Tap End Studs can be manufactured to standards such as ASTM A193 and ASTM A320, along with applicable ASME and API requirements.
What materials are available?
Available materials include carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloys, Inconel and Monel, subject to the required specification.
Which industries commonly use Tap End Studs?
They are used in oil & gas, petrochemical, power generation, pressure vessels, heat exchangers, valves, pumps, offshore equipment and heavy engineering applications.
Can Tap End Studs be custom manufactured?
Yes. Custom diameters, lengths, tap-end depths, thread configurations, materials and finishes can be manufactured according to drawings or project specifications.
What thread classes are available?
UNC, UNF, 8UN and metric threads can be supplied. Specific thread classes and tolerances can be produced according to the applicable standard or customer requirement.
Do you provide inspection certificates?
Yes. MTCs, EN 10204 3.1 / 3.2 certificates, dimensional inspection reports, PMI and third-party inspection documentation can be provided when specified.
Are corrosion-resistant coatings available?
Yes. Depending on material and application, options can include PTFE, Xylan, hot dip galvanized, zinc plated, black oxide and other specified finishes.
Can Tap End Studs be supplied with Heavy Hex Nuts?
Yes. Compatible Heavy Hex Nuts can be supplied with Tap End Studs based on the stud material, diameter, thread type and applicable specifications.
